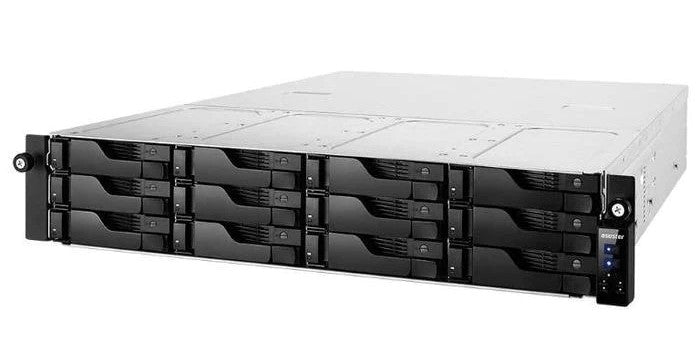

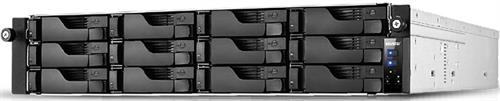

The Asus 2U Rack Mount AS7112RDX NAS offers robust performance with an Intel Xeon E-2224 processor, 8GB ECC UDIMM memory, and extensive connectivity including 12 drive bays and multiple USB ports. Ideal for storage-intensive tasks, it features dual M.2 drive slots and supports both 3.5" and 2.5" SATA HDDs, backed by reliable power delivery from dual 550W PSU units.
Features
•Intel Xeon 9th generation Quad-Core CPU
•2U chassis design, 12 SATA drive bays
•Dual M.2 NVMe SSD ports for fast caching
•Supports Virtualization and Docker apps
Specifications
•Product code: AS7112RDX
•Specifications: Asus 2U Rack Mount 12 bay AS7112RDX NAS
•CPU Model: Intel Xeon E-2224
•CPU Architecture: x64 64-bit
•CPU Frequency: Quad-Core 3.4GHz up to 4.6GHz
•Memory: 8GB DDR4-2666 ECC UDIMM
•Memory Module Pre-installed: 8GB (1x 8GB)
•Total Memory Slots: 4
•Memory Expandable up to 128GB (4x 32GB)
•Support mixed capacity
•Flash Memory: 8GB USB DOM
•Drive Bays: 12
•M.2 Drive Slots: 2
•Compatible Drive Type
•Maximum Drive Bays with Expansion Unit 24
•Supports Hot Swappable Drives
•Expansion: 4x USB 3.2 Gen 2 (10Gbps) Type-A ; 2x USB 3.2 Gen 2 (10Gbps) Type-C
•Network: 4x Gigabit Ethernet (1G/100M)
•PCIe Expansion Slots: 2x Gen3x4 slots (x4 link) ; 1x Gen3x8 slots (x8 link)
•for optional 10/25/40/50 GbE card and SAS card
•System Fan: 3x 60mm
•Power Supply Unit / Adapter: 550W x2
•Input Power Voltage: 100V to 240V AC
•Certification: FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS
•Power Consumption: 92.4W (Operation);
•45.5W (Disk Hibernation)
•7.55 W (Sleep Mode);
•Operation Temperature: 0°C~40°C (32°F~104°F)
•Storage Temperature: -20°C~70°C (-4°F~158°F)
•Humidity: 5% to 95% RH
•Size: 88(H) x 439(W) x 535(D) mm
•Weight: 13 (kg) / 28.6(lb)
