TP-Link 300Mbps Wireless N Speed Router - 300Mbps wireless transmission rate ideal for both bandwidth sensitive tasks and basic work, IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming, Compatible with IPv6 (Internet Protocol version 6)
Product Overview

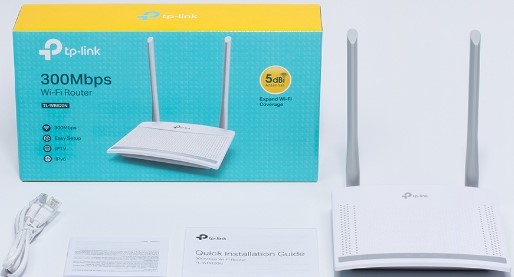

The Wi-Fi Router TL-WR820N supports Wi-Fi 4 (802.11n/b/g) on the 2.4 GHz band with speeds up to 300 Mbps, ideal for 2-bedroom houses using two fixed antennas. It offers multiple operating modes including router, access point, range extender, and WISP, with robust security features such as WPA3 encryption, SPI firewall, and guest network support. The compact router includes one 10/100 Mbps WAN port and two LAN ports, with easy setup via the Tether app and compatibility with various internet protocols for versatile home network management.
Features
•300Mbps wireless transmission rate ideal for both bandwidth sensitive tasks and basic work
•IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
•Compatible with IPv6 (Internet Protocol version 6)
•Guest Network provides separate access for guests while securing the host network
•Parental Controls manage when and how connected devices can access the internet
•Security protocols protect your home network with firewalls and wireless encryption
Specifications
•Product Code: TL-WR820N
•Description: TP-Link 300Mbps Wireless N Speed Router
Standards and Protocols
•Wi-Fi 4: IEEE 802.11n/b/g 2.4 GHz
•WiFi Speeds: 2.4 GHz 300 Mbps (802.11n)
•WiFi Range: 2× Fixed Antennas
•WiFi Capacity: Legacy
Working Modes
•Router Mode
•Access Point Mode
•Range Extender Mode
•WISP Mode
Network Security
•SPI Firewall
•Access Control
•IP & MAC Binding
•Application Layer Gateway
•Guest Network: 1× 2.4 GHz Guest Network
WiFi Encryption
•WPA
•WPA2
•WPA3
•WPA/WPA2-Enterprise (802.1x)
•Processor: Single-Core CPU
Ethernet Ports
•1× 10/100 Mbps WAN Port
•2× 10/100 Mbps LAN Ports
•Buttons: Reset Button
•Power: 5 V ⎓ 0.6 A
•Protocols: IPv4, IPv6
•Parental Controls: URL Filtering, Time Controls
WAN Types
•Dynamic IP
•Static IP
•PPPoE
•PPTP
•L2TP
•Quality of Service: QoS by Device
NAT Forwarding
•Port Forwarding
•Port Triggering
•DMZ
•UPnP
IPTV
•IGMP Proxy
•IGMP Snooping
•Bridge
•Tag VLAN
DHCP
•Address Reservation
•DHCP Client List
•Server
•DDNS: NO-IP, DynDNS
•Management Features: Tether App, Webpage
System Requirements
•Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
•Cable or DSL Modem (if needed)
•Subscription with an internet service provider (for internet access)
•Certifications: FCC, CE, RoHS
